New version 2022

TECHNICAL SPECIFICATIONS
GENERAL
Channels : 480 channel
Frequency Range : 24.2655-29.6555MHZ
Frequency Control : PLL
Operating Temperature Range : -10°/+55° C
DC input voltage : 13.2V DC ±15%
Size : 180 (L)x35 (H)x140 (P) mm
Weight : 0,850 kg

RECEIVER
Receiving system : dual conversion superheterodyne
Intermediate frequency : I° IF: 10.695 MHz • II° IF: 455 KHz
Sensitivity : 0.5μV for 20 dB SINAD
Audio output power @10% THD : 2.0 W @ 8 Ohm
Audio distortion : less than 8% @ 1 KHz
Image rejection : .65 dB
Adjacent channel rejection : 65 dB
Signal/Noise ratio : 45 dB
Current drain at stand/by : 250mA

TRANSMITTER
Output power(AM+FM) : 8W @ 13.2V DC
FM: 1,8 KHz ± 0,2 KHz
Frequency response : from 400 Hz to 2.5 KHz
Output impedance : RF 50 Ohm unbalanced
Signal/Noise Ratio : 40 dB MIN
Current drain : 1100mA (Power position with no modulation)
Output power(FM version) : 18W @ 13.2V DC
Modulation : AM: from 85% to 95%
Modulation : FM: 1,8 KHz ± 0,2 KHz

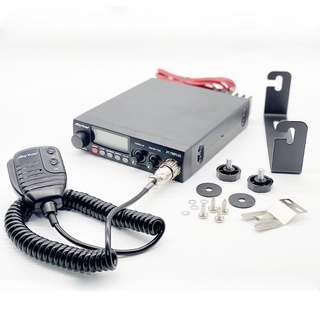

Package includes:
1× Anytone CB Radio
1× Microphone
1x Power cable
1 × User Manual
