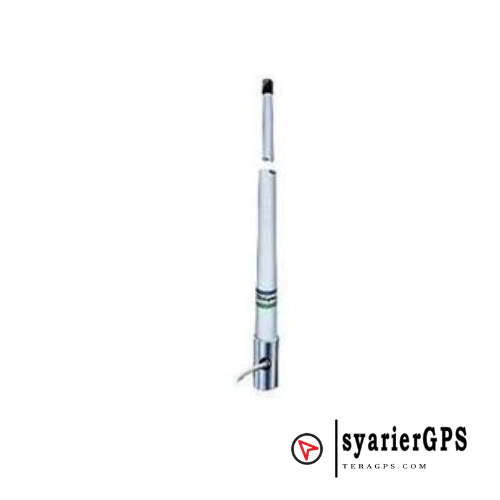

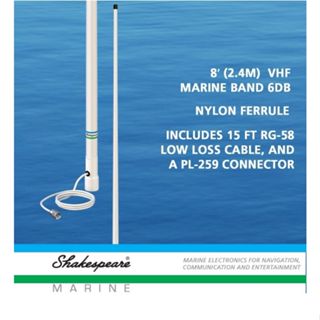

8’ (2.4m) VHF Marine Band 6dB

End-fed with matching stub

An economical and lightweight, self-supporting antenna for good communications where range is not the predominant factor. The 5206-N has a nylon ferrule.

Quality copper cable elements for good range and efficiency
Nylon ferrule.
Includes 15ft RG-58 cable, which can be cut to size, and a PL-259 connector
Great value!
One section

Shakespeare 5206-N Specifications
Band: VHF Marine Band
Antenna Gain: 6dB
Max. Input Power: 50 watts
SWR: nominally 1.3:1 at 156.8 MHz
Bandwidth: 5 MHz within 2.0:1 VSWR
Ferrule: Nylon
Coax Supplied: 15 ft of RG-58
Connector Supplied: PL-259, not installed
Color/finish: White
Polarity: Vertical
Impedance: 50 Ohms
DC Ground: No DC Ground – The antenna will read open on continuity test.

What’s in the box:
Shkespeare 5206 8ft VHF antenna
4186 ratchet mounts
15ft of RG-58
PL-259 connector
