GPS Characteristics
Receive channel: GPS 12 parallel channels, 12 satellite tracking
Positioning Systems: all-in view
Accuracy GPS: position :< 15m (95%); speed: 0.1m/s; time: 100ns Synchronized with satellite time
Start Time: average 15 seconds (hot start); average 45seconds (warm start); average 60seconds (cold start)
Restart Time: 0.1second
Dynamics: Altitude: 50,000m Max
Velocity: 500 m/s
Acceleration: 4g Max

Receiver Assembly
Display System: Screen size: 4.5inch, 95mm (w)*63mm (h) Monochrome LCD display 240*128 pixels
Display modes: Plotter Screen, Highway Screen, Steering Screen, Nava Data Screen, User Digital Screen, Speedometer Screen
Projection: Mercator projection
Memory capacity: 1000 waypoints; 50routes of up to 30waypoints each; 1 track of up to 10000 track points.
Alarm: ARV alarm, ANC alarm, XTE alarm, Speed alarm, Clock alarm, Trip alarm, Odometer alarm
Interface: NMEA 0183 2.1version
Voltage: 10-36VDC, 240-120MA
Power Supply: <2w

Operating Environment
Temperature:
Antenna unit: -25to +70.
Display unit: -15to +55
Humidity: 40<93%
Waterproof: Antenna unit: IPX6
Display unit: IPX5
Product size: 195mm (L)* *70mm (W)*105mm (H)
Net weight: 0.45kg
Packing size: 205mm (L)*122mm (W)*178mm (H)
Gross weight: 1.15kg

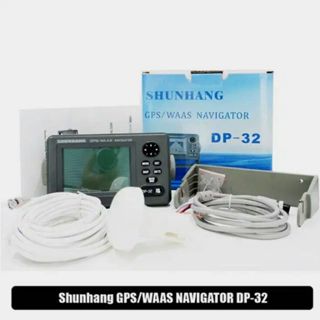

What’s in the box:

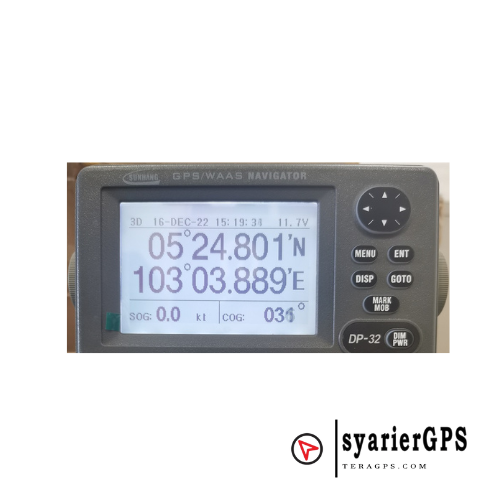

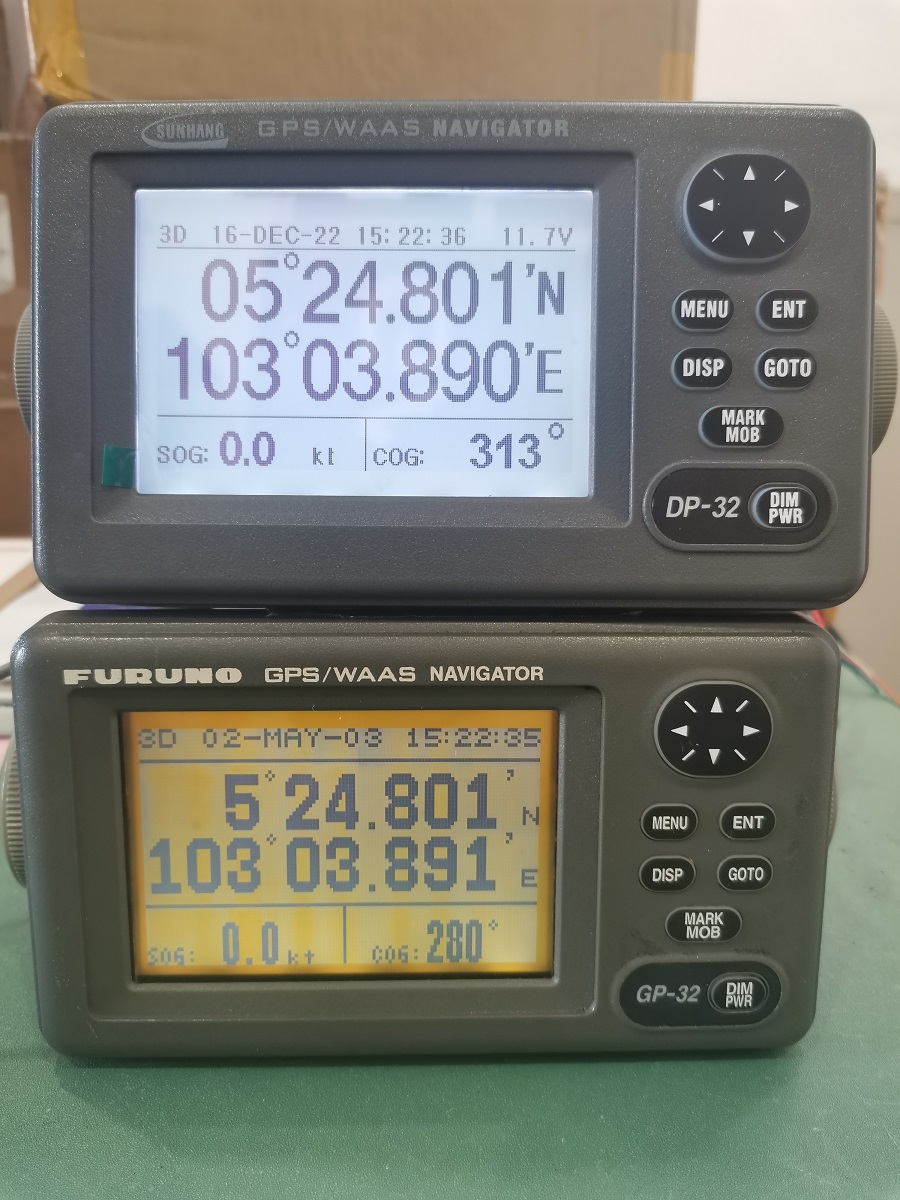

SUNHANG DP-32 GPS Plotter
Knob x 2pcs
Bracket
GPS antenna
Power cable/data cable
Bracket screw (PA4*20) x 4pc
User manual

One year warranty
