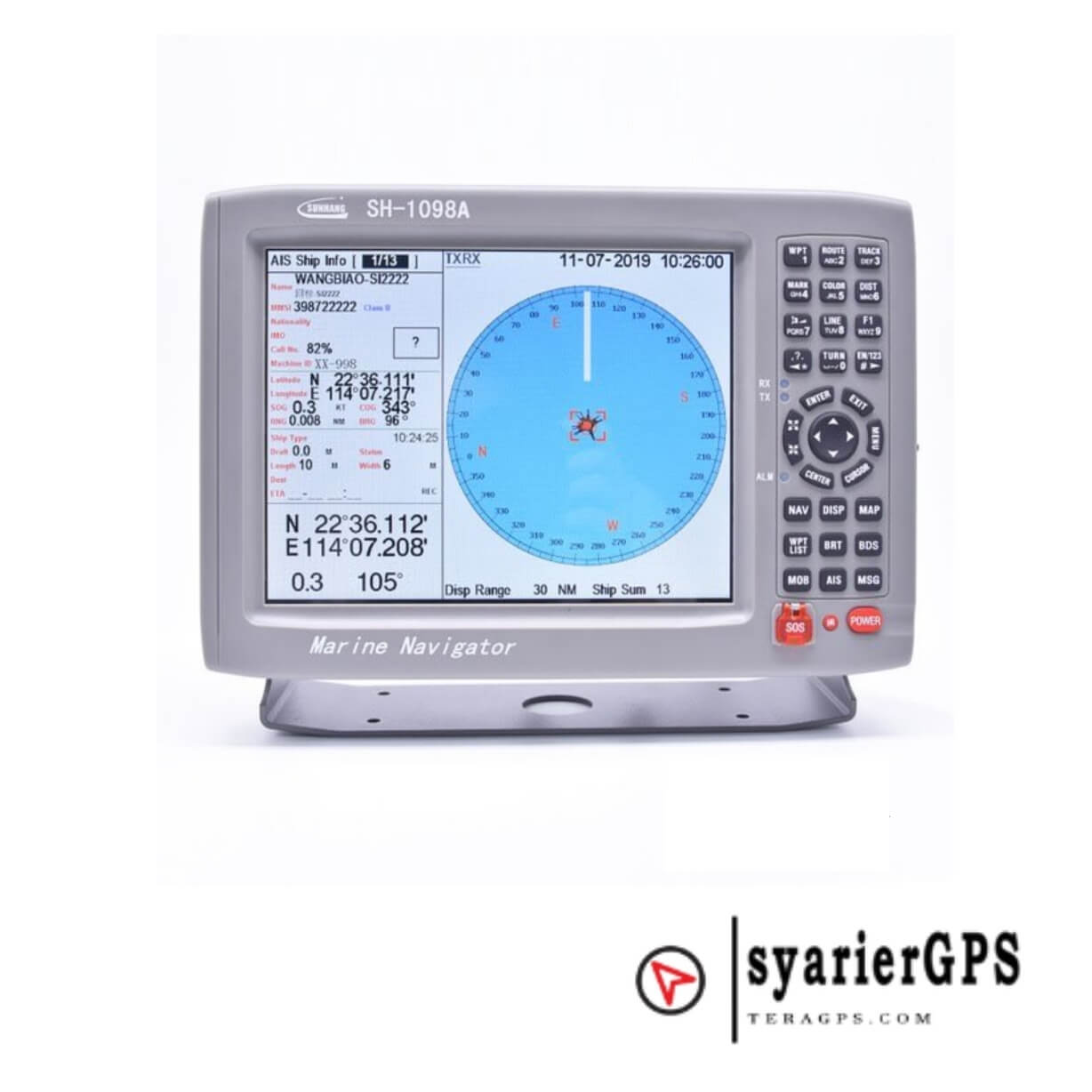

Model SH-1098A

1. 10000 waypoints; 10000 marks, 500routes of up to 100waypoints each; 24 tracks of

up to 6100 track points each

2. Internal AIS Transponder&Receiver, receive and send message

3. Display screens:Position Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen,

AIS Screen, Day/Night Mode5. Support update chart plotter by SD card,support data butt

4. Waterproof,mouisureproof,salt spray proof

GPS Characteristics

Receive channel: GPS: 12 parallel channels, 12 satellite tracking

Positioning Systems: all-in-view

Accuracy GPS: position: <5m (95%); speed: 0.1m/s; time:±90ns Synchronized with satellite time

Start Time: <3 seconds (hot start); average 45seconds (warm start); average 60seconds (cold start)

Restart Time: 0.1second

Receive Frequency: L1(1575.42±MHz)

Tracking speed: 0.1-1000Byte

Dynamics

Altitude: 50,000m Max

Velocity: 500 m/s

Acceleration: 4g Max

Receiver Assembly

Display System: Screen size: 10.4inch true color LCD, 800X600pixels, brightness

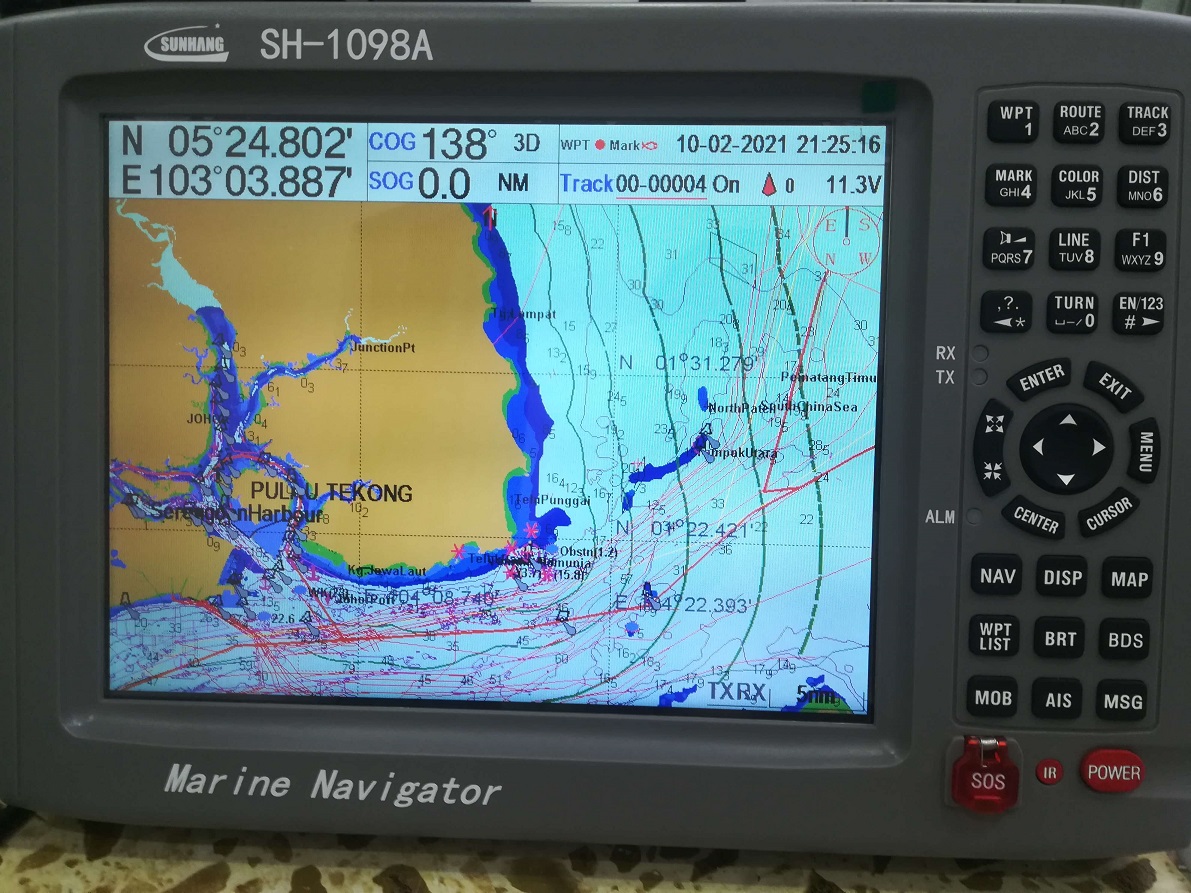

Display modes: Position Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen,

AIS Screen, Day/Night Mode

Memory capacity: 10000 waypoints; 10000 marks, 500routes of up to 100waypoints each; 24 tracks of

up to 6100 track points each

Tracking speed: 0.1byte

GPS Alarm: ARR ALARM; XTE ALARM; ANC ALARM; MET ALARM

Voltage: 12-24vdc

Power Supply: <8w

AIS Characteristics

Working frequency: 161.975MHz/162.025MHz

Output power: 5w

Channel Bandwidth: 25 KHz

Channel spacing: 25 KHz

Modulation mode: 25 KHz GMSK

Bit Rate: 9600b/s+50ppm (GMSK)

AIS receiver sensitivity: -116dBm

Operating Environment

Temperature

Antenna unit:-25℃ to +70℃;

Display unit:-15℃ to +55℃

Humidity: 40℃<93%

Temperature range: -15 ℃ – + 70 ℃

Storage temperature: -40℃-+80℃

Waterproof

Antenna unit: IPX6

Display unit: IPX5

Product size: 331mm (L)*108mm (W) *229mm (H)

Net weight: 2.1kg

Packing size: 388mm (L)*229mm (W)*267mm (H)

Gross weight: 6kg

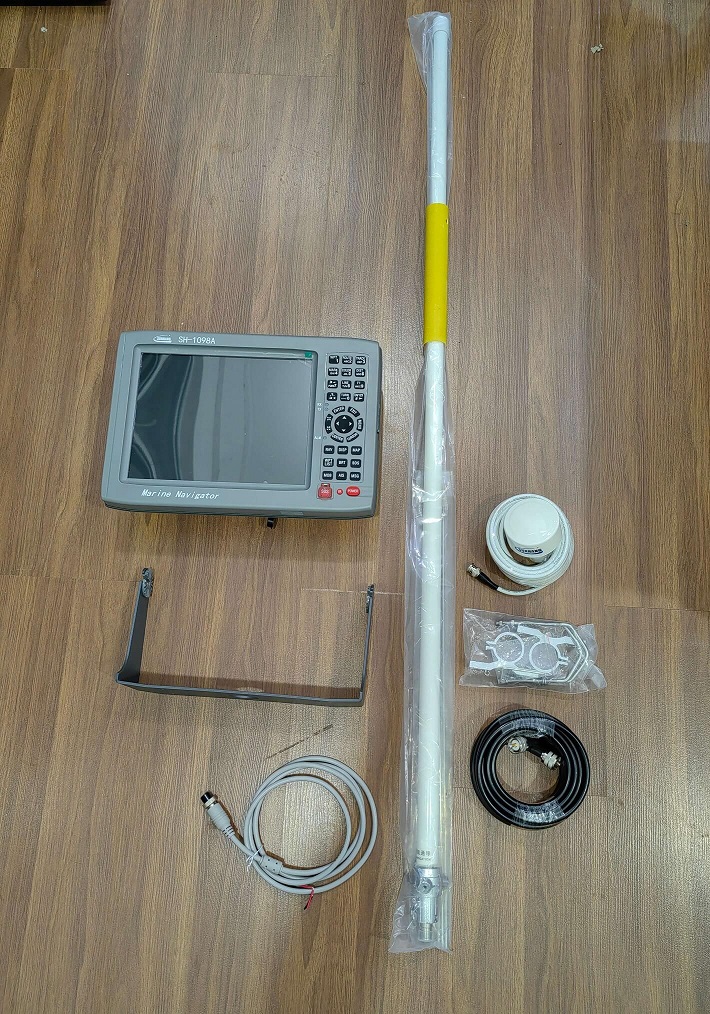

Packing List

1. SH-1098 Unit*1 pc

2. Knob*2 pcs

3. Power cable*1 pc

4. User manual*1 pc

5. Screw (PA4*20) *4pcs

6. GPS antenna*1 pc

7. AIS antenna *1 pc

8. AIS feeder cable* 1pc

9. Iron frame* 2 pcs

10. AIS VHF antenna*1 pc
