Features

・ Uses digital signal processing
Kodens advanced digital signal processing technology provides both higher resolution in shallow areas and high gain in deep areas.

・ Store the Image
You can store up to 10 images. Connecting the optional GPS sensor also allows you to display the position on the stored image.

・ Sona-Tone
This function uses sound to notify users when fish or the school is located.

・ Automatic functions make operation simple
Equipped with a full range of automatic functions. (GAIN, RANGE, SHIFT)

・ High-performance 5.7-inch LCD provides good visibility. The CVS-126 is also highly water resistant.
High visibility and drip-proof performance (IPX5) mean the CVS-126 can be installed in an open bridge.

・ Energy-efficient design
This is an energy-efficient model that achieves low power consumption using a white LED.

Main Specifications
Main functions Zoom, Auto, A-scope, Presentation colors: 64, 16, 8 colors, Store image, Fishing Hot Spot, Sona-Tone
Basic range 2.5 to 800 Meter/ Fathom/ Italian Fathom

10 to 2800 Feet
Output power (RMS) 600 W
Output frequency Dual 50/200 kHz
Water protection IPX5
Dimensions 208(H) x 182(W) x 130(D) mm
Weight 1.3 kg
Power supply 10.8 to 31.2 VDC

What’s in the box:

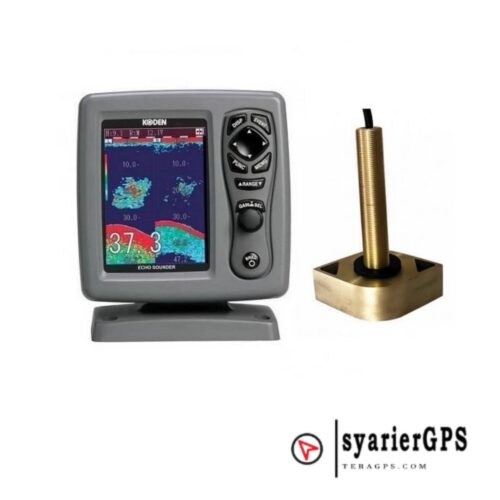

Koden CVS-126
600 Watts Bronze Thru Hull Transducer
Protective Cover
Power Cable
Mounting Bracket
Manual Guide

What’s in the box:
Koden CVS-126
600 Watts Bronze Thru Hull Transducer
Protective Cover
Power Cable
Mounting Bracket
Manual Guide
One year warranty
