10,000 waypoints, 10,000 marks, 100 routes of up to 100 waypoints each, 12 tracks of up to 16,384 track points each

Display screens: Positioning Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen

Alarm: FIX Alarm; ARV Alarm; XTE Alarm; ANC Alarm; Clock

Waterproof, salt spray proof

Track protection, can delete any track

GPS Characteristics

Receive channel GPS: 12 parallel channels, 12 satellite tracking

Positioning Systems: all-in view

Accuracy GPS: position: <5m (95%); speed: 0.1m/s; time:100ns Synchronized with satellite time

Start Time: <3 seconds (hot start); average 45seconds (warm start); average 60seconds (cold start)

Restart Time: 0.1second

Receive Frequency: L11575.42MHz

Tracking speed: 0.1-1000Byte

Dynamics:

Altitude: 50,000m Max

Velocity: 500 m/s

Acceleration: 4g Max

Receiver Assembly

Display System: Screen size:7-inch true color LCD.

Display modes: Positioning Screen, Satellite Screen, Compass Screen, Chart Plotter Screen, Highway Screen

Memory capacity: 10,000 waypoints; 10,000 Marks, 100 routes of up to 100 waypoints each; 12 tracks of up to 16,384 track points each

Tracking speed: 0.1byte

GPS Alarm: FIX Alarm; ARV Alarm; XTE Alarm; ANC Alarm; Clock

Voltage: 10-36vdc

Power Supply: <4w

Operating Environment

Temperature

Antenna unit: -25 to +70.

Display unit: -15 to +55

Humidity: 40<93%

Temperature range: -15 – + 70

Storage temperature: -40-+80

Waterproof:

Antenna unit: IPX6

Display unit: IPX5

Product size: 262mm (L)*172mm (W)*85mm(H)

Net weight: 0.95kg

Packing size: 272mm (L)*170mm (W)*235mm (H)

Gross weight: 2.8kg

What’s in the box:

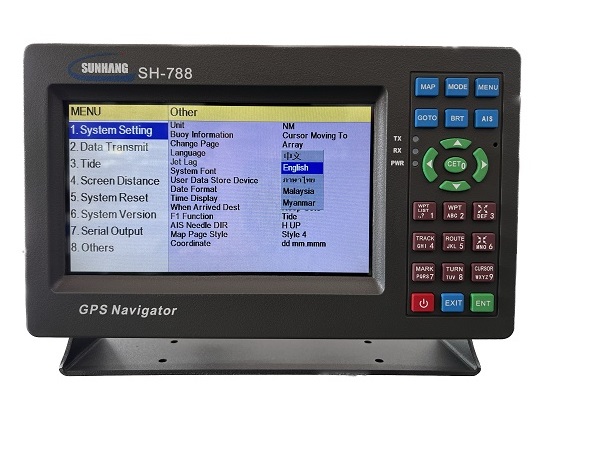

SH-788

Power cable

GPS antenna

Mounting bracket with knobs

Screws

Manual guide

1 year warranty
