-Waterproof, moisture proof, salt mist-resistance

-10000 waypoints/marks, 100 routes of up to 100 waypoints each, 12 tracks of 16384 track points each, color adjustable

-Alarm: AVR/ANC alarm, XTE alarm, clock alarm, odometer alarm, no GPS fix alarm

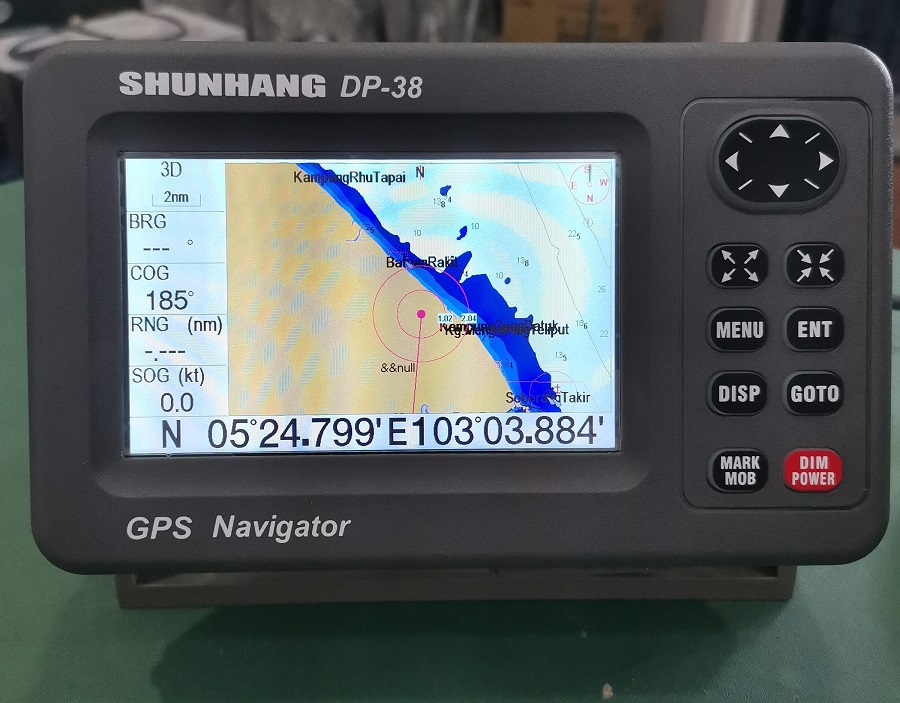

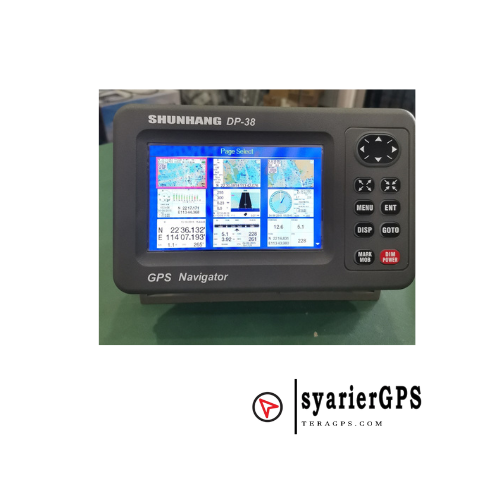

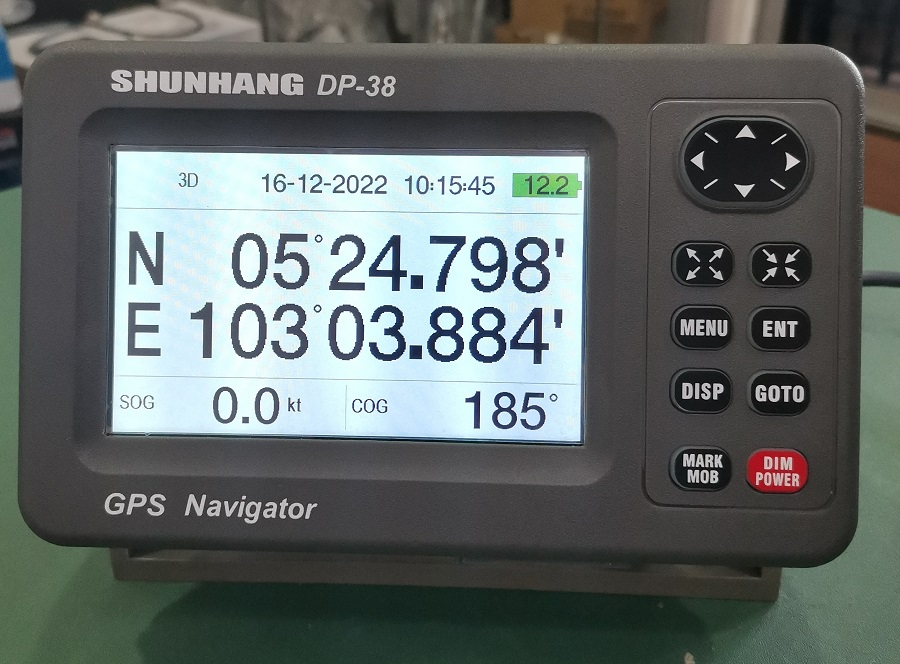

-Display modes: chart plotter screen, highway screen, steering screen, compass screen, Navi data screen, satellite screen, user digital screen, speedometer screen.

-Present voltage shown on the navigator

-Direct data transmit between the same model navigator for the waypoints and routes

-English, Bahasa Malaysia, Chinese and Thailand language available

Specifications:

Receive channel: GPS 12 parallel channels, 12 satellite tracking

Positioning system: All-in view

Accuracy GPS: Position: <15m (95%); speed:0.1m/s;time:±100ns Synchronized with satellite time

Restart time: 0.1 second

Altitude: 50,000m Max

Velocity: 500 m/s

Acceleration: 4g Max

Screen size: 5-inch HD LCD, 101.6 x 71.2mm

Resolution: 800 x 400

Display modes: Chart plotter screen, Highway screen, Steering screen, Compass screen, Navi data screen, Satellite screen, User digital screen, Speedometer screen

Projection: Mercator projection

Memory capacity: 10,000 waypoints/marks, 100 routes of up to 100 waypoints each, 12 tracks of up to 16384 track points each

GPS alarm: AVR/ANC alarm, XTE alarm, Clock alarm, Odometer alarm, no GPS fix alarm

Voltage: 2-wire power cord 10-36vdc

Temperature: Antenna unit: -25℃ to +70℃, Display unit: -15℃ to +55℃

Humidity: 40℃<93%

Waterproof: Antenna unit IPX6, Display unit IPX5

Product size: 198mm (L) x 67mm (W) x 121mm (H)

Net weight: 0.45kg

Packing size: 272mm (L) x 170mm (W) x 235mm (H)

Gross weight: 1.85kg

What’s in the box:

DP-38 display unit

32gb Memory Card

Protective Cover

GPS Antenna unit with 7m cable

Mounting Bracket

Power Cable

Screw (PA4*20) x 4PCS

Knob x 2pcs

User Manual

One year warranty
